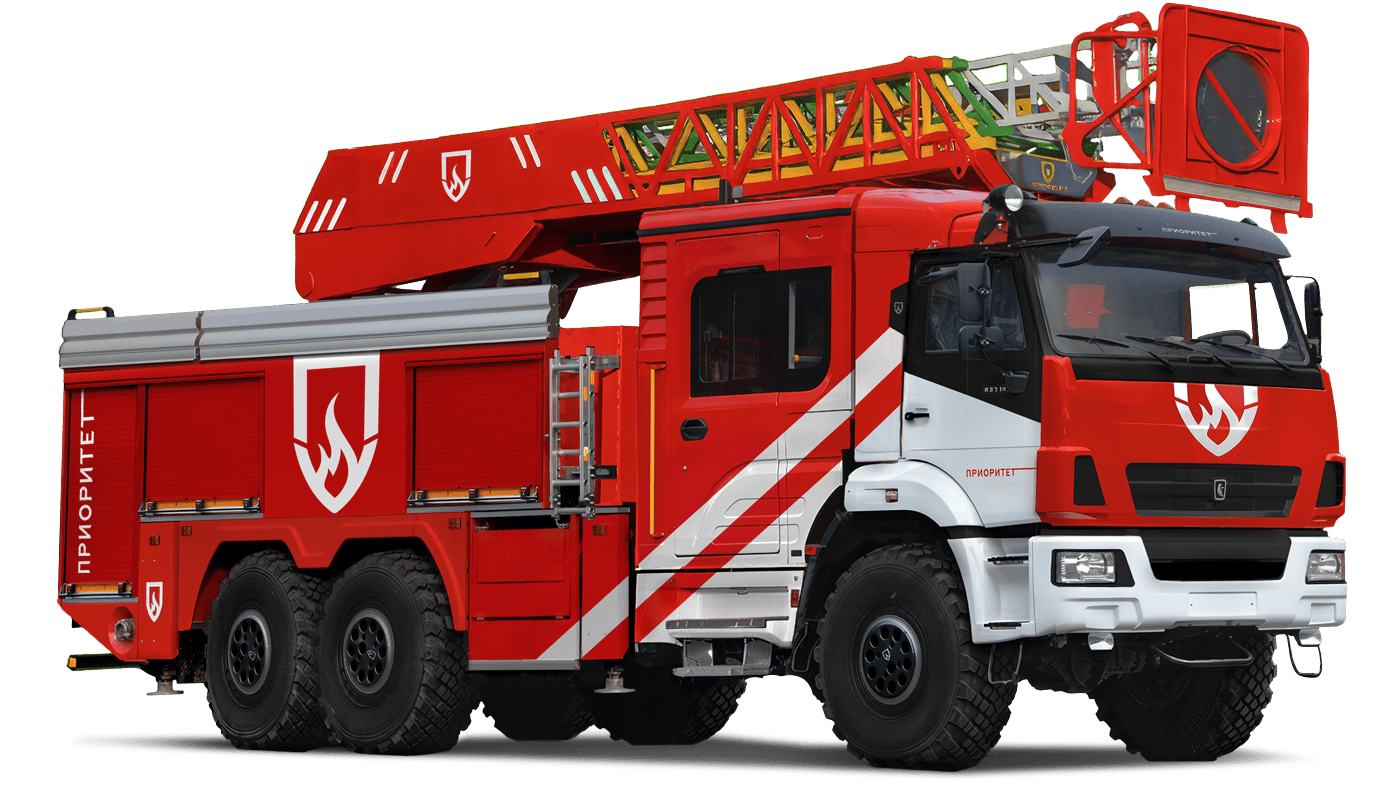

Fire fighting tanker with the ladder AZL-3,0-50-24 (43118)
The fire fighting tanker with the ladder is designed for emergency rescue operations at a height, supply of fire extinguishing agents to the height and the possibility of using it as a crane with a folded set of knees.
KAMAZ 43118
6x6
chassis
NZPN-50/100
pump
50 L/sec
pump capacity
4х
door
cab
3,0 m3
water tank
24 m
ladder
6 people
crew
240 L
foam tank
Warranty
Warranty is provided for all vehicles. The warranty period begins from the date of sale. The consumer (owner, lessee) has a right for warranty service during the warranty period, if the following conditions are met.
Chassis warranty
KAMAZ
2
year
warranty
120 000 km
mileage warranty
Warranty for superstructure and equipment
PRIORITET
12
months
warranty
1 500 cycles
warranty period
Technical specifications
| CHASSIS | KAMAZ 43118, 6×6 |
| SUPERSTRUCTURE | Aluminum frame, covered with aluminum sheets, weldless
Roller shutters |
| EXTENDING LADDER | Working height: 24m |
| LOADING CAPACITY OF THE CAGE, KG, NOT LESS | 180 |
| WORKING RANGE OF LADDER LIFT IN THE VERTICAL PLANE, NOT LESS THAN
|
from minus 7° to plus 75° |
| MAXIMUM SPEED, KM/H | 90 |
| NOMINAL ENGINE POWER, HP, NOT LESS | 310 |
| CAB | 4-door |
| VEHICLE DIMENSIONS | 9,70х2,55х3,95м |
| GROSS WEIGHT | 24000 kg |
