Fire fighting tanker with the ladder AL 52 (Kamaz 6520)
The fire ladder is designed to carry out rescue operations at a height, to supply fire extinguishing agents to a height and can be used as a lifting crane with a folded set of knees. AL 52 is equipped with a removable basket at the top and an the lift moving along the ladder.
KAMAZ 65222
6x6
chassis
2х
door
cab
3 people
crew
Warranty
Warranty is provided for all vehicles. The warranty period begins from the date of sale. The consumer (owner, lessee) has a right for warranty service during the warranty period, if the following conditions are met.
Chassis warranty
KAMAZ
2
year
warranty
120 000 km
mileage warranty
Warranty for superstructure and equipment
PRIORITET
12
months
warranty
1 500 cycles
warranty period
Technical specifications
| CHASSIS | Kamaz-6520,6×4 |
| SUPERSTRUCTURE | All-metal construction
Wing doors / Roller shutters |
| AERIAL LADDER | Working height: 52m |
| MAX. WORKING HEIGHT,KG, NOT LESS | 200 |
| ANGLE OF CONTINUOUS ROTATION OF THE LADDER, NOT LESS THAN | 360° |
| TIME OF INSTALLATION ON OUTRIGGERS, SEC., NOT MORE THAN | 55 |
| FIRE MONITOR | Performance 40 l/s |
| CAB | 2-door, all-metal |
| VEHICLE DIMENSIONS | 12х 2,5 х 3,95m |
| GROSS WEIGHT | 26 500 kg |
get a commercial offer
Leave a request right now!
You may also be interested.
AL 42 (63934)
chassis - KAMAZ 63934 4x2
ladder - 42 m
ladder rotation - >360°
crew - 2 people

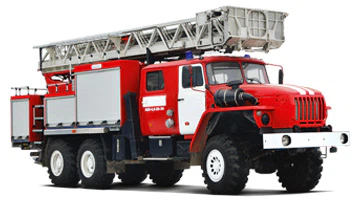

AZL-4,0-50-24 (4320)
